Smart home small commercial Washing cup machine stainless steel
Undercounter Dishwasher
Quick Detail:
Place of Origin | China |
voltage&Power | 380V/12KW |
dimension | 600*680*850mm |
Gross Weight | 80KG/PCS |
washing capacity | 60 frames/H |
water consumption | 2.8L/H |
main temperature | 60-65℃ |
rinse temperature | 80-90℃ |
Inlet water pressure (kg/C㎡) | 2-5kg/C㎡ |
Inlet size | G1/2" |
drain size | θ50 |
washing basket inlet size | 500*400mm |
Features:
-With CE certificate
-With self-research internal water softener.

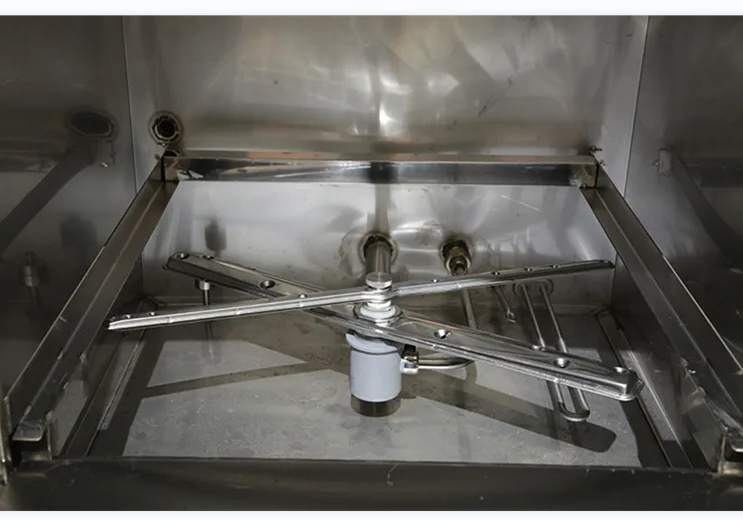

-Removable spray pipe makes it convenient to wash the machine;
-Suitable for the restaurant, canteen, factory or school with 400
seats.

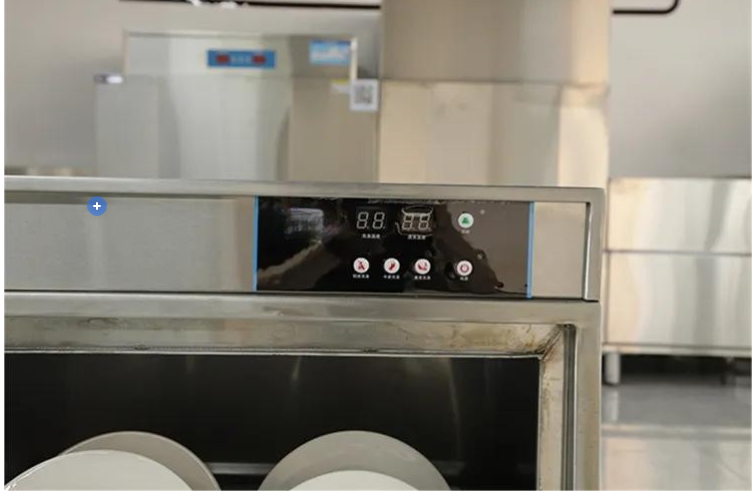

-Simple and easy panel design, high light LED display, be clear at
a glance;
-Top cover use double construction designment, and can save more
energy, reduce noise;
Specification:
Name/Model | HZ-40E |
Requirements | 220V 50Hz 1N/380V 50Hz 3N |
Incoming water temperature(℃) | 10 |
Tank heater(KW) | 3 |
Booster heater(KW) | 4.5 |
Wash pump(KW) | 0.6 |
Total connected load(KW) | 8.1 |
Total amps required(A) | 21.3 |
Cross section of cable(mm²) | 4 |
Rated current of circult breaker(A) | 16 |
Heating | Electric |
External dimension(mm) | 600*601*825 |
Clearance height(mm) | 310 |
Max capacity(rack/hour) | 60 |
Water consumption(liter/rack) | 2.5 |
Wash tank capacity(l) | 35 |
Booster capacity(l) | 5.5 |
Wash temperature(℃) | 60-65 |
Rinse temperature(℃) | 82-90 |
Diameter of water inlet hose(in) | 3/4 |
Diameter of drain pipi(in) | DN25 |
Incoming water pressure(Kg/cm²) | 1.5KG |
Incoming water hardness(g/l) | 0.034-0.103 |
