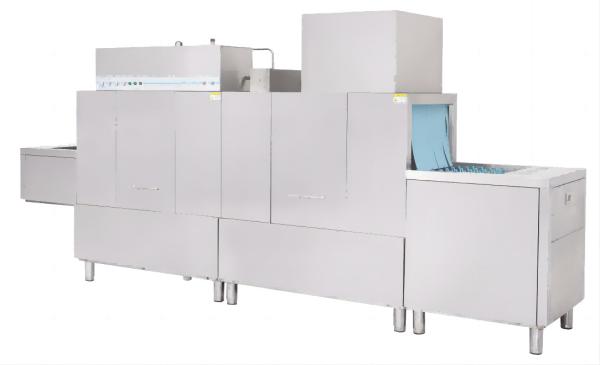

Energy Save Flight Type Commercial Automatic Dishwashe Machine
Quick Details :
Dimension with wooden pakage | 4720*970*1880mm | Place of Origin | China | Voltage&Power | 380V/59KW | Dimension | 4600*850*1760mm | Gross Weight | 700KG/PCS | Washing capacity | 3500-7000 discs/H | Water consumption | 390L/H | Main temperature | 60-65℃ | Rinse temperature | 80-90℃ | Inlet water pressure (kg/C㎡) | 2-5kg/C㎡ | Inlet size | G1/2" | Drain size | θ50 | Washing basket inlet size | 600*420mm |
|
|
Energy Saving Flight Type Commercial Automatic Dishwashe Machine Features
(1) double insulation
(2) magnetic push open door
(3) open door power protection
(4) frequency conversion stepless speed regulation
(5) infrared induction energy saving
(6) touch screen intelligence Control
(7) one-button troubleshooting
| ModelNo | P | A | R | D |
| Product Name | Pre-washing | Main -washing | Rinsing | Drying |
| Length | 800 | 800 | 600 | 800 |
| Width | 862 | 862 | 862 | 862 |
| Hsmt | 1426 | 1426 | 1426 | 2000 |
| Electrial |
| Rated Voltagg(V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 |
| Main Heating Power(kN) | | 18 | | |
| Main Wash Pump Power(kW) | 1.5 | 1.5 | | |
| Rinse Heating Power(kW) | | | 30 | |
| Rinse Pump Power(kw) | | | 0.37 | |
| Water Tank Capacity(L) | 98 | 98 | 24 | |
| WaterInlet(DN) | | | 3/4°- φ10 | |
| Drainage(DN) | 50 | 50 | 50 | |
| Water Pressure(MPa) | | | 0.1～0.35 | |
| Main Wash Temperature | | 55-65 | | |
| Water Rinse Temperature(℃) | | | 82～ 90 | |
| WaterInlet Temperature CC) | | | 10～60 | |
| Enter Water Hardness(Mg/L) | | | 34～103 | |
| Max capacity (rack /hour) PBRDD量 | 7700pcs/H(8inch) |
| DryingHeatingPower (kW) | 9 |
| DryingPower (kW) | 0.75 |
| Drying Temperature (℃) | 55～85 |
About Us:
Guangdong Hengze Commercial Kitchen Equipment Co., Ltd.. was
established in 2016 and located in Shunde Foshan, China. It is a
leading enterprise in the commercial dishwasher equipment industry
with strong technical strength and complete production lines.
We are a professional manufacturer specialized in commercial
dishwasher equipment with many years experiences. Now we have 4
main dishwasher products including hood type dishwasher, rack
conveyor dishwasher and Long line conveyor dishwasher,Bubble
Washing Machine . High quality is the most important point for us
to make sure our final customers have perfect satisfied using
experience. By now, we have cooperated with many Hotels, Schools,
Company groups, Hospitals and Restaurants also we have exported our
dishwasher into many countries out of China rely on the advantage
of our competitive price, high quality, fast producing and
delivery.
Hengze has been committed to providing international standard
quality commercial dishwasher products and one-stop solutions for
all partners. We have the most advanced laser cutting machine,
bending machine. From product development to production inspection,
we have a complete set of quality control process. Also we have
obtained CE ISO14001 ISO9001 certification. Selling well in all
cities and provinces around China, the products are also exported
to customers all of the world as the United States, Japan,
Malaysia, Thailand, Singapore, Qatar, India, Africa, Kazakhstan and
Saudi Arabia.
We have an experienced products development team making sure to
provide OEM/ODM service with high-quality. Whether selecting a
current product from our catalog or seeking engineering assistance
for your requirement you can talk to our customer service center
about your sourcing requirements. We must provide you professional
services with nice price, high quality and fast delivery.
